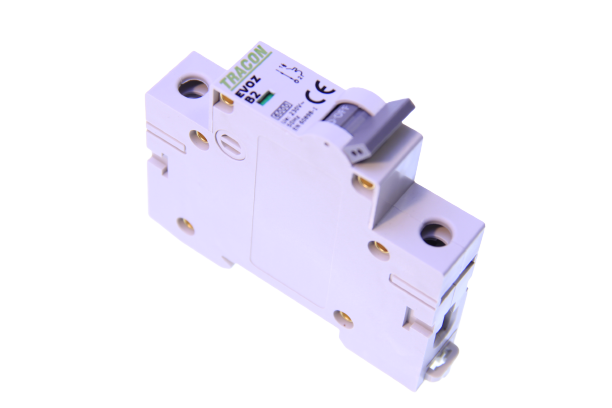

CIRCUIT BREAKER 1P B13A 6kA B2 DIN
EVOZ1B13 TRACON
Possibility of retrofitting with an auxiliary contact for the EVOZ series <<< check
PARAMETERS:
| Trigger Characteristics: | B |
| Number of poles (total): | 1 |
| Number of poles: | 1 |
| Rated current: | 13A |
| Rated voltage: | 230V |
| Rated insulation voltage Ui: | 500V |
| Rated impulse withstand voltage Uimp: | 4 kV |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V: | 6 kA |
| Voltage type: | AC |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V: | 6 kA |
| Frequency range: | 50 - 60 Hz |
| Simultaneously disconnected N pole: | NO |
| Possibility of additional equipment: | Yes |
| Width expressed in the number of modules: | 1 |
| Degree of protection (IP): | IP20 |
| Ambient temperature under working conditions: | - 25 - 55 °C |
| Cross-section of the connected single-wire cable: | 1 - 25 mm² |
