SIMET

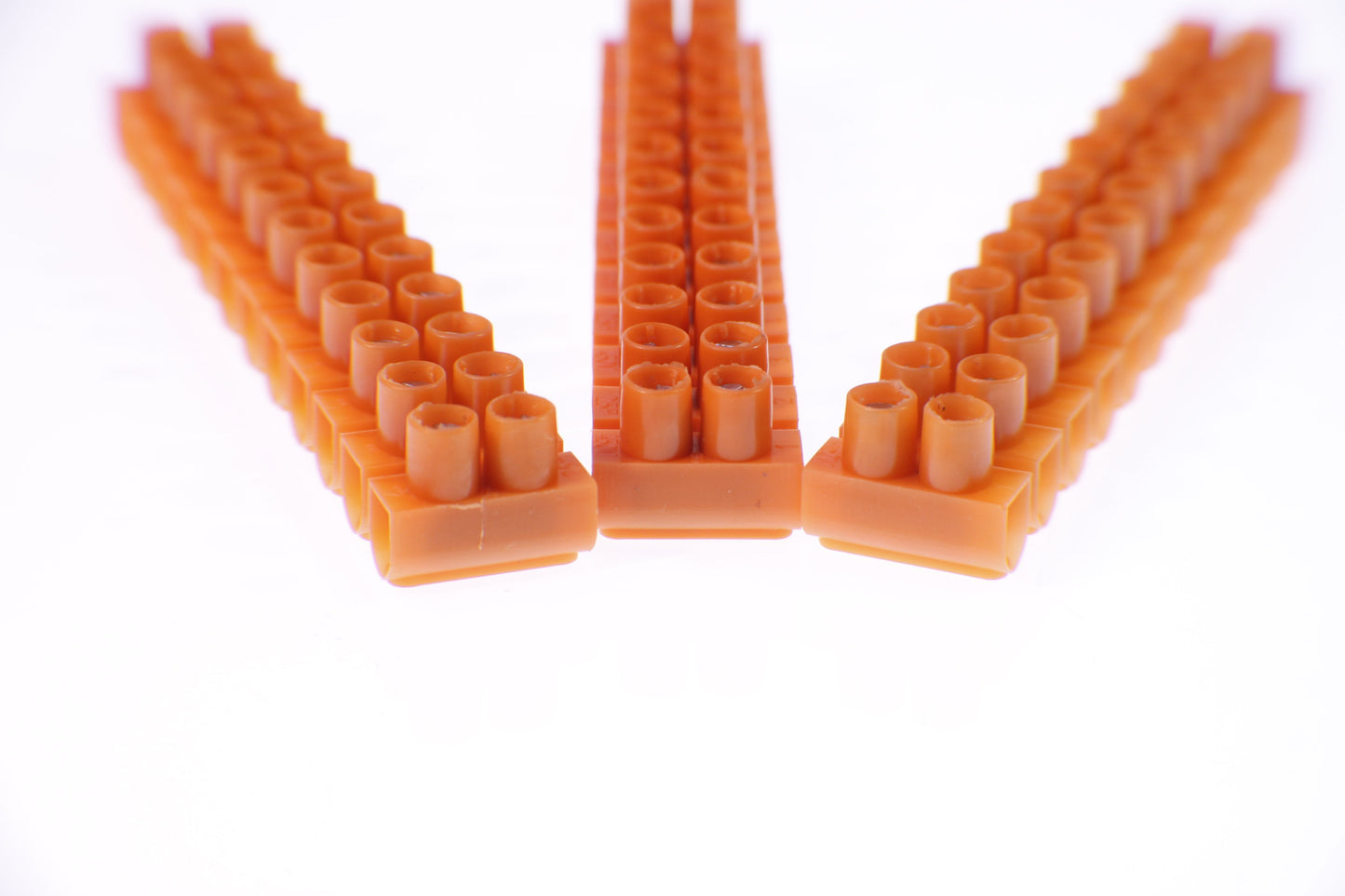

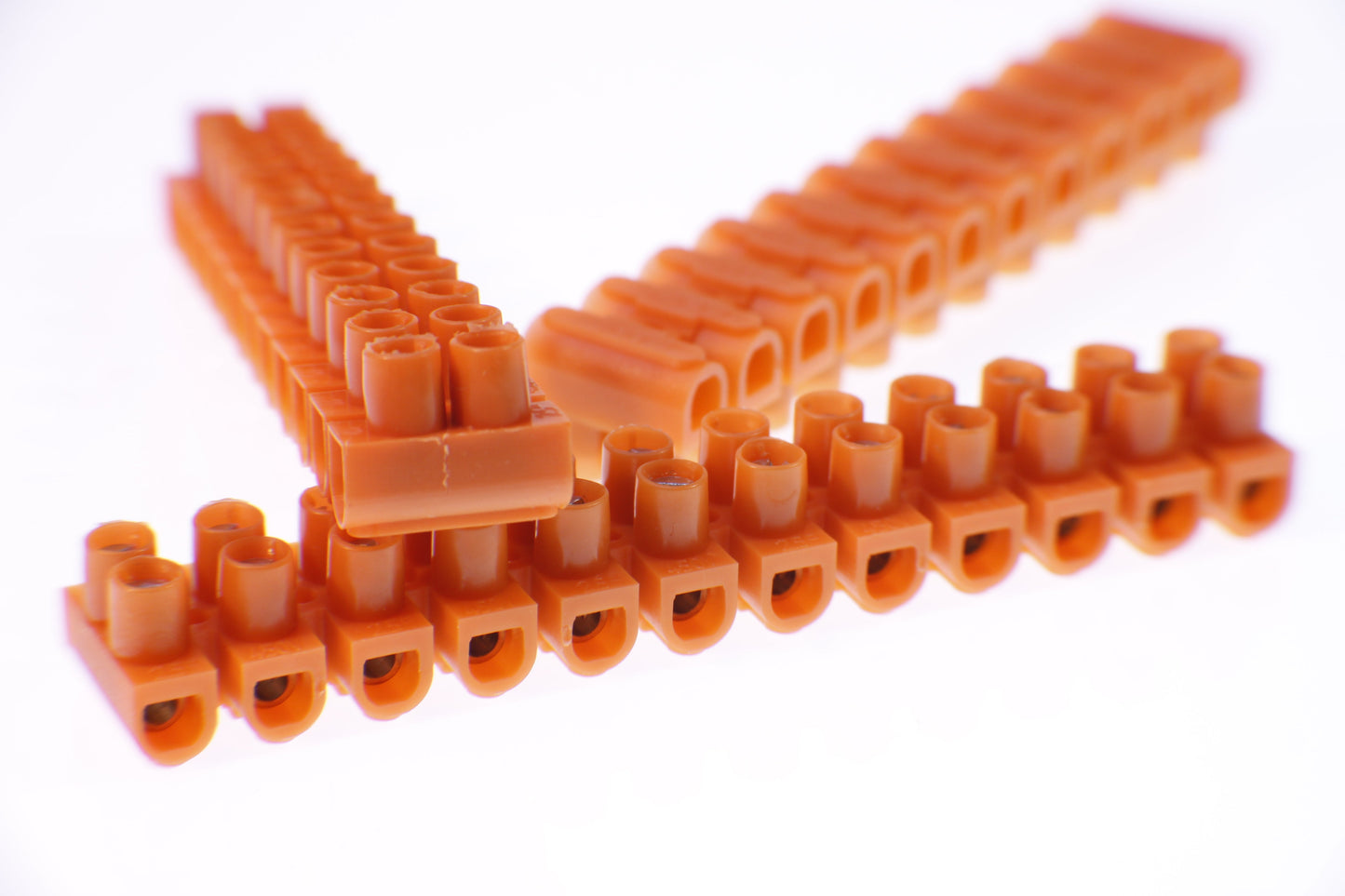

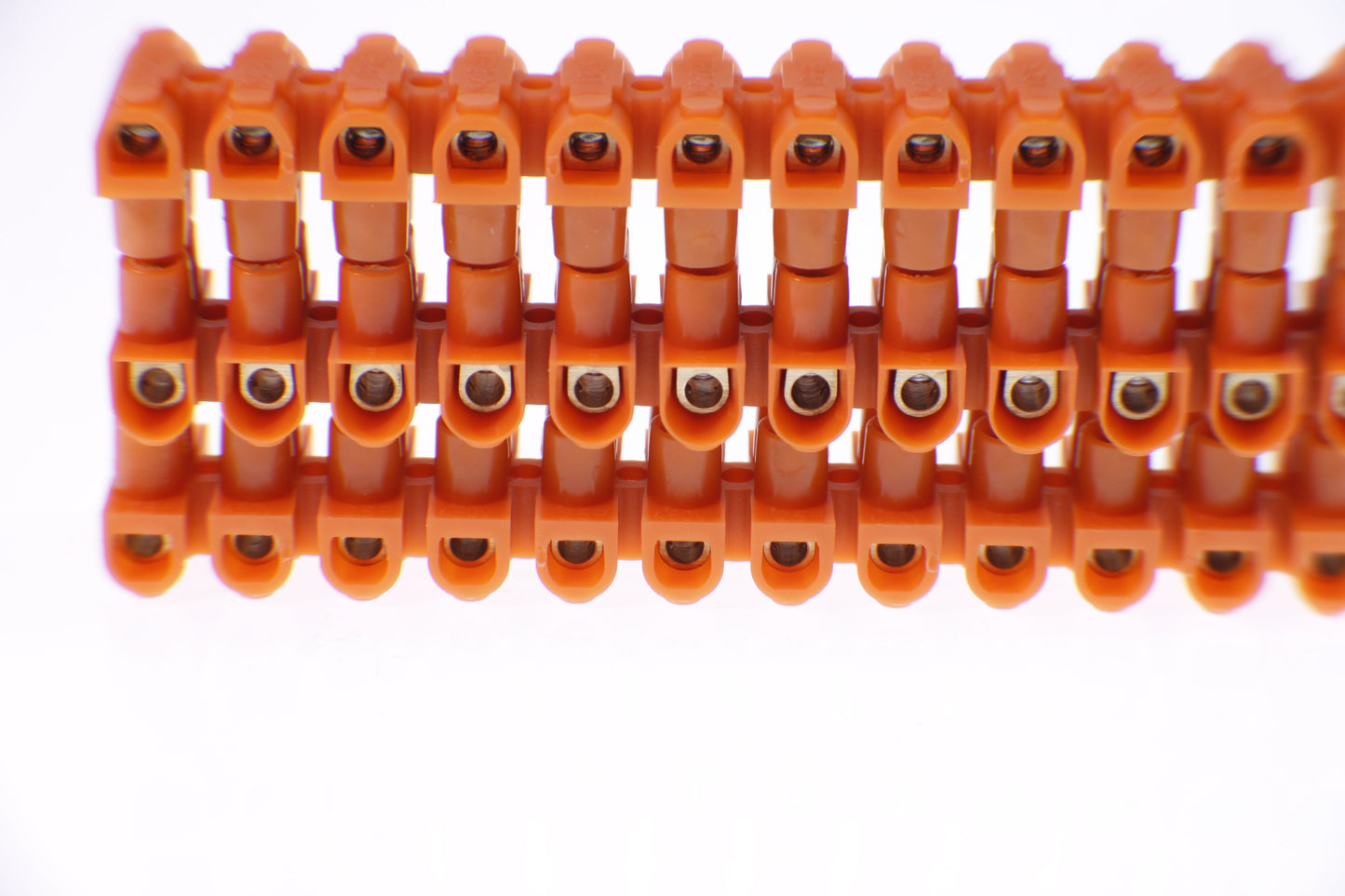

12-track screw terminal block, 2.5mm2, orange

12-track screw terminal block, 2.5mm2, orange

Regular price 6,15 zl PLN
Regular price Sale price 6,15 zl PLN
Sale Sold out
Tax included. Shipping calculated at checkout.
Shipping costs from PLN 0! 📦

We ship within 24 hours 😀👍

12-row threaded strip, cube, for connecting wires, for cables

Terminal strip 12F 1-2.5mm2 LTF 12-2.5 21210108 is used to make connections in boxes, small switchboards and control cabinets. The strip is made of non-flammable, self-extinguishing, orange material. It is equipped with twelve connection tracks that can be quickly and efficiently divided using an assembly knife. The strip works with cables with a cross-section of 1 to 2.5 mm2. To make the connection, thread clamps located in the plastic body are used.

Cross-section of connected multi-core cable [mm2] 1 - 2.5
Operating temperature range [° C] to -40 - 85
Length [mm] 94
Rated current In [A] 24
Raster width / size [mm] 16
Distance between hole centers [mm] 8
Number of poles 12
Number of terminals per pole 2
Height at the lowest mounting method [mm] 13
