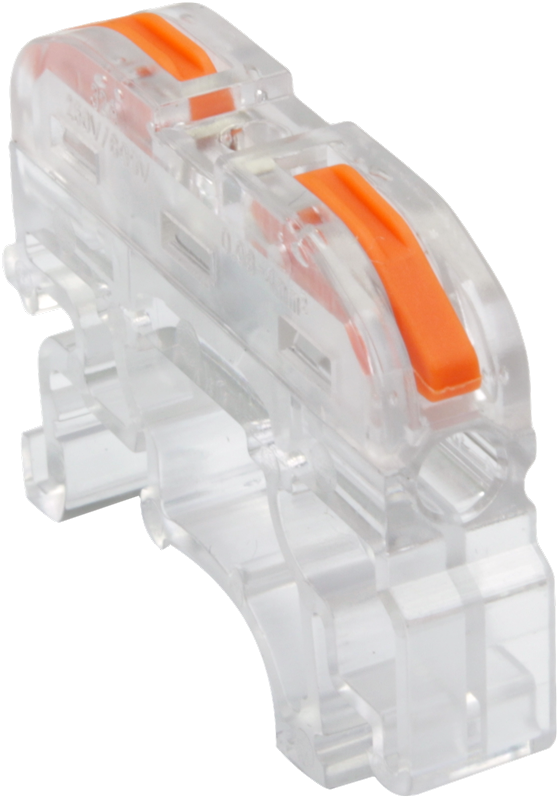

Screw-on quick connector with lever transparent 2 tracks 4mm2 Tracon
Screw-on quick connector with lever transparent 2 tracks 4mm2 Tracon
Regular price
2,15 zl PLN
Regular price
Sale price
2,15 zl PLN
Unit price
per
Tax included.
Shipping calculated at checkout.
We ship within 24 hours 😀👍
Couldn't load pickup availability
Openable clamp connector
Screwless connector transparent
OVOKT11 TRACON
Technical data
0.5-4mm2, 32A, 400VAC 1P
Technical specification
| Cross-section of the connected stranded wire without ferrule: | 0.5 -2.5 mm² |
| Cross-section of the connected single-wire wire: | 0.5 -4 mm² |
| Rated current In: | 32 A |
| Nominal voltage: | 400V |
| Electrical connection type 1: | Spring clamp |
| Electrical connection type 2: | Spring clamp |
| Number of terminals per level: | 2 |
| Installation method: | Other |
| Operating temperature range: | -40 -105 °C |
| Width: | 8mm |
| Height: | 30.4mm |
| Depth: | 43mm |
| Closing plate required: | NO |
| Color: | Other |
| Guarantee: | 2 years old |

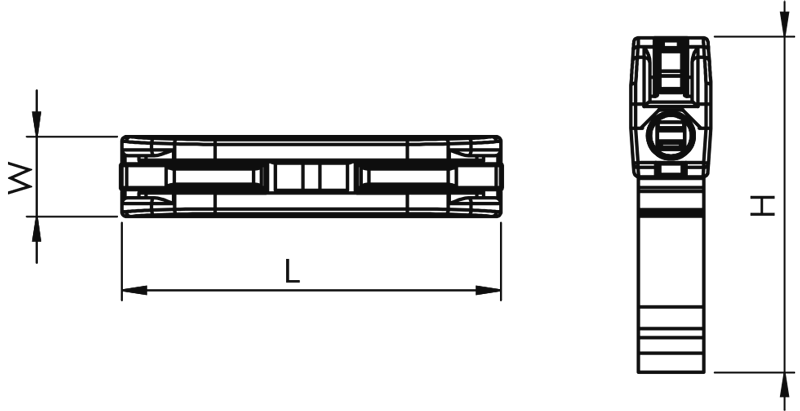

Dimensions
More information
 Operating temperature |
 Insulation material: PC (Polycarbonate) |
 Rated insulation voltage |
 Degree of protection |
 Material: Electrolytic nickel-plated copper |
 Rated current (A) |
 |
 |
L (mm)
|
In (mm)
|
H (mm)
|
|
OVOKT11
|
2 × 0.5-4 |
43
|
8
|
30.4
|
