TRACON

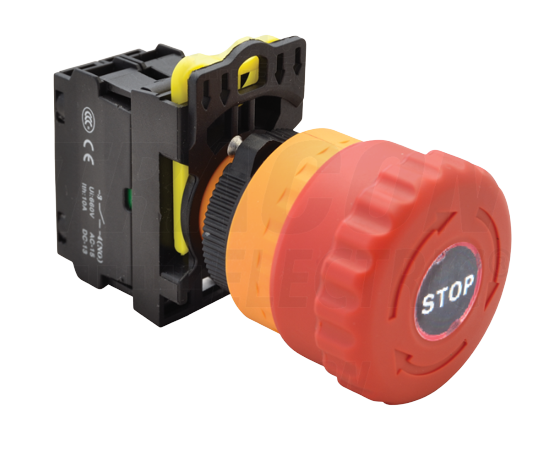

Emergency STOP switch, industrial mushroom IP50 EMAS
Emergency STOP switch, industrial mushroom IP50 EMAS
Regular price
37,62 zl PLN
Regular price
Sale price
37,62 zl PLN
Unit price
per
Tax included.
Shipping calculated at checkout.
We ship within Three days 😀👍
Couldn't load pickup availability


SHIPPING COST PLN 0
If you order products offered on our store's website for a total amount:
- at least PLN 200 , you get the shipment to a parcel locker for PLN 0!
- at least PLN 250 , delivery to a parcel locker COD on delivery PLN 0!
HAND SWITCH EMERGENCY STOP MUSHROOM RED BUTTON INDUSTRIAL RED EMAS WITH CONTACT

Model | Emergency stop |
Contact | 1NC |
Color | Red |
Diameter | 22mm |
Head diameter | 40mm |
Contact current (Ie) | 3 A (240 V AC) |
Category of use | AC 15 |
Mechanical life (minimum quantity) | 300,000 |
Electrical life (minimum quantity) | 100,000 |
Operating frequency (on / off / hour) | Down. 3000 elect. 1200
|
Insulation voltage (Ui) | 250V |
Impact resistance (Uimp) | 2.5 kV |
Dielectric strength (body contact) | 2,500V AC |
Dielectric strength (contact-contact) | 1.500V AC |
Insulation resistance | 10 MΩ MIN. (500V DC) |
Working temperature | -15 / + 80 ° C |
The degree of pollution | 3 |
Protection class | IP50 |
Contact material | AgNi |
Cable cross section | 1.5-2.5 mm² |
Downforce | 1.5 Nm |
Short-circuit breaking capacity (Ics) | 1kA |
Informacje o producencie
Nazwa: | TRACON Budapest Kft. |
Adres: | Dunakeszi, Pallag u 23, 2120 Węgry |
E-mail: | info@tracon.hu |
Produkt wprowadzony do obrotu na terenie UE przed 13.12.2024.
