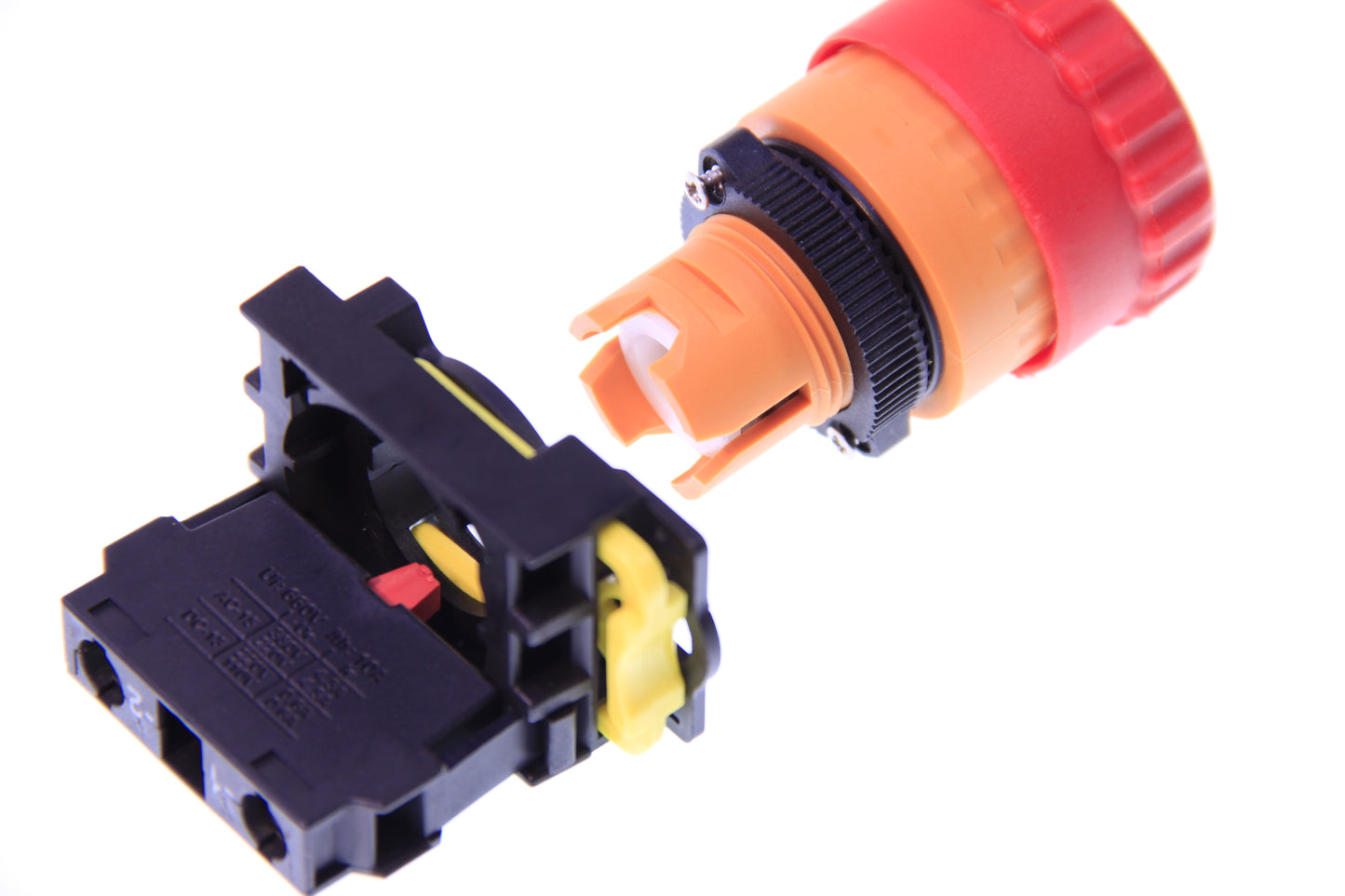

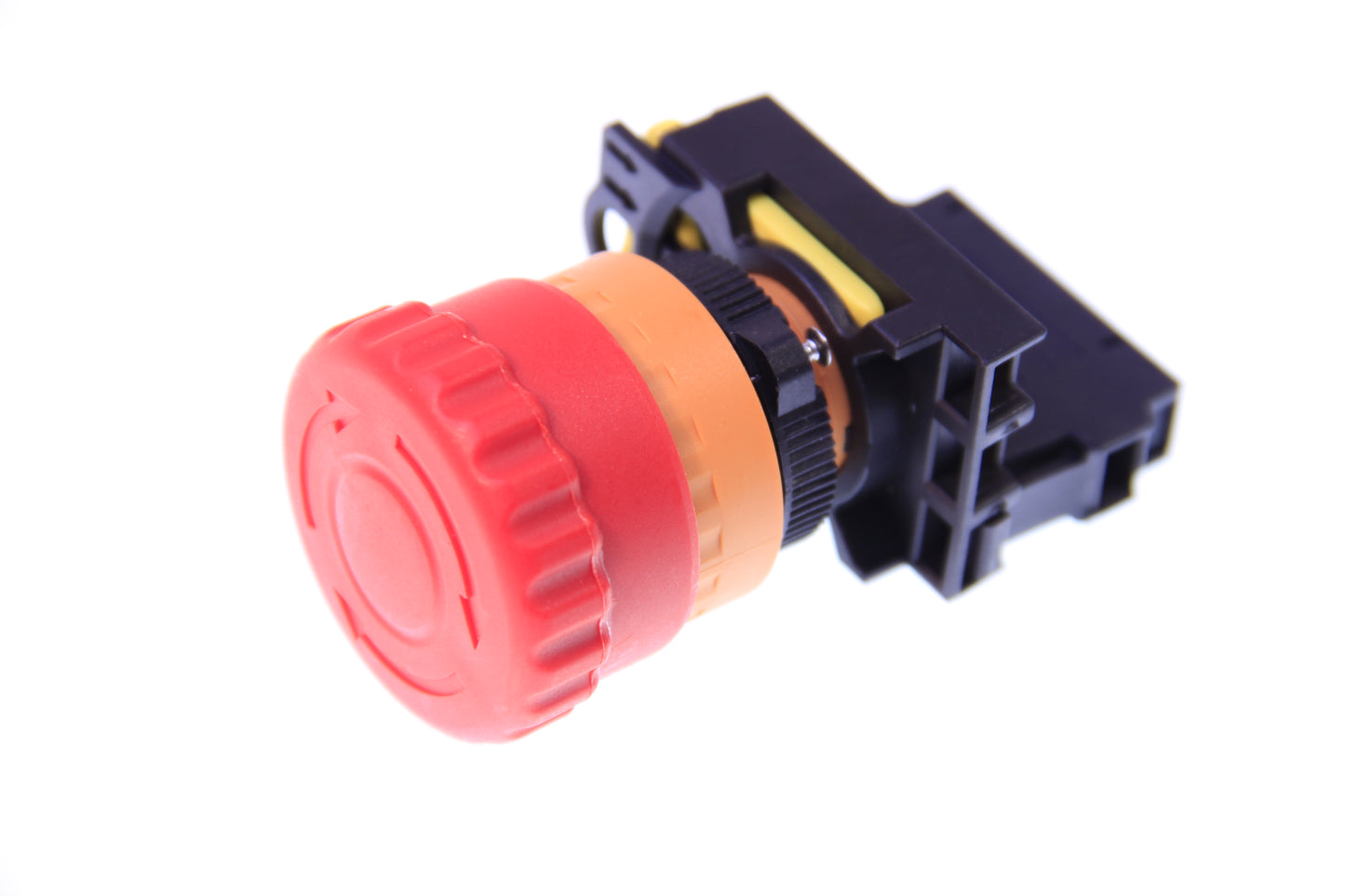

Emergency STOP switch, industrial mushroom IP50 EMAS
Emergency STOP switch, industrial mushroom IP50 EMAS
Regular price
29,99 zl PLN
Regular price
Sale price
29,99 zl PLN
Unit price
per
Tax included.
Shipping calculated at checkout.
We ship within Three days 😀👍
Couldn't load pickup availability
HAND SWITCH EMERGENCY STOP MUSHROOM RED BUTTON INDUSTRIAL RED EMAS WITH CONTACT
![Emergency STOP switch, industrial plug](https://cdn.shopify.com/s/files/1/0615/4974/0193/files/MG_3328_480x480.jpg?v=1663922988)
Model | Emergency stop |
Contact | 1NC |
Color | Red |
Diameter | 22mm |
Head diameter | 40mm |
Contact current (Ie) | 3 A (240 V AC) |
Category of use | AC 15 |
Mechanical life (minimum quantity) | 300,000 |
Electrical life (minimum quantity) | 100,000 |
Operating frequency (on / off / hour) | Down. 3000 elect. 1200
|
Insulation voltage (Ui) | 250V |
Impact resistance (Uimp) | 2.5 kV |
Dielectric strength (body contact) | 2,500V AC |
Dielectric strength (contact-contact) | 1.500V AC |
Insulation resistance | 10 MΩ MIN. (500V DC) |
Working temperature | -15 / + 80 ° C |
The degree of pollution | 3 |
Protection class | IP50 |
Contact material | AgNi |
Cable cross section | 1.5-2.5 mm² |
Downforce | 1.5 Nm |
Short-circuit breaking capacity (Ics) | 1kA |
