Two-button control button, unstable, COVERED, 1NO + 1NC, red green
Two-button control button, unstable, COVERED, 1NO + 1NC, red green
Regular price
29,99 zl PLN
Regular price
Sale price
29,99 zl PLN
Unit price
per
Tax included.
Shipping calculated at checkout.
We ship within 24 hours 😀👍
Couldn't load pickup availability

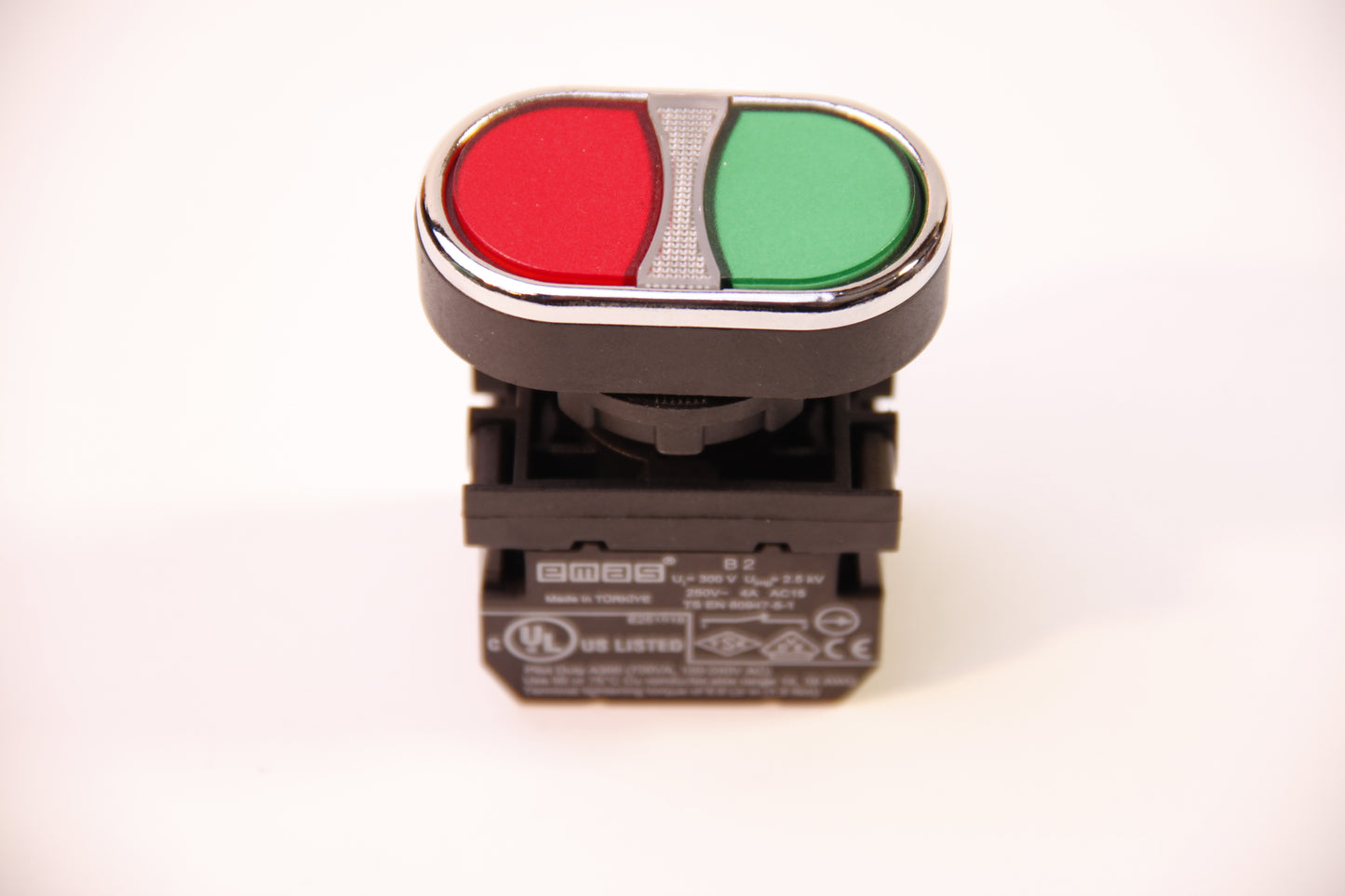

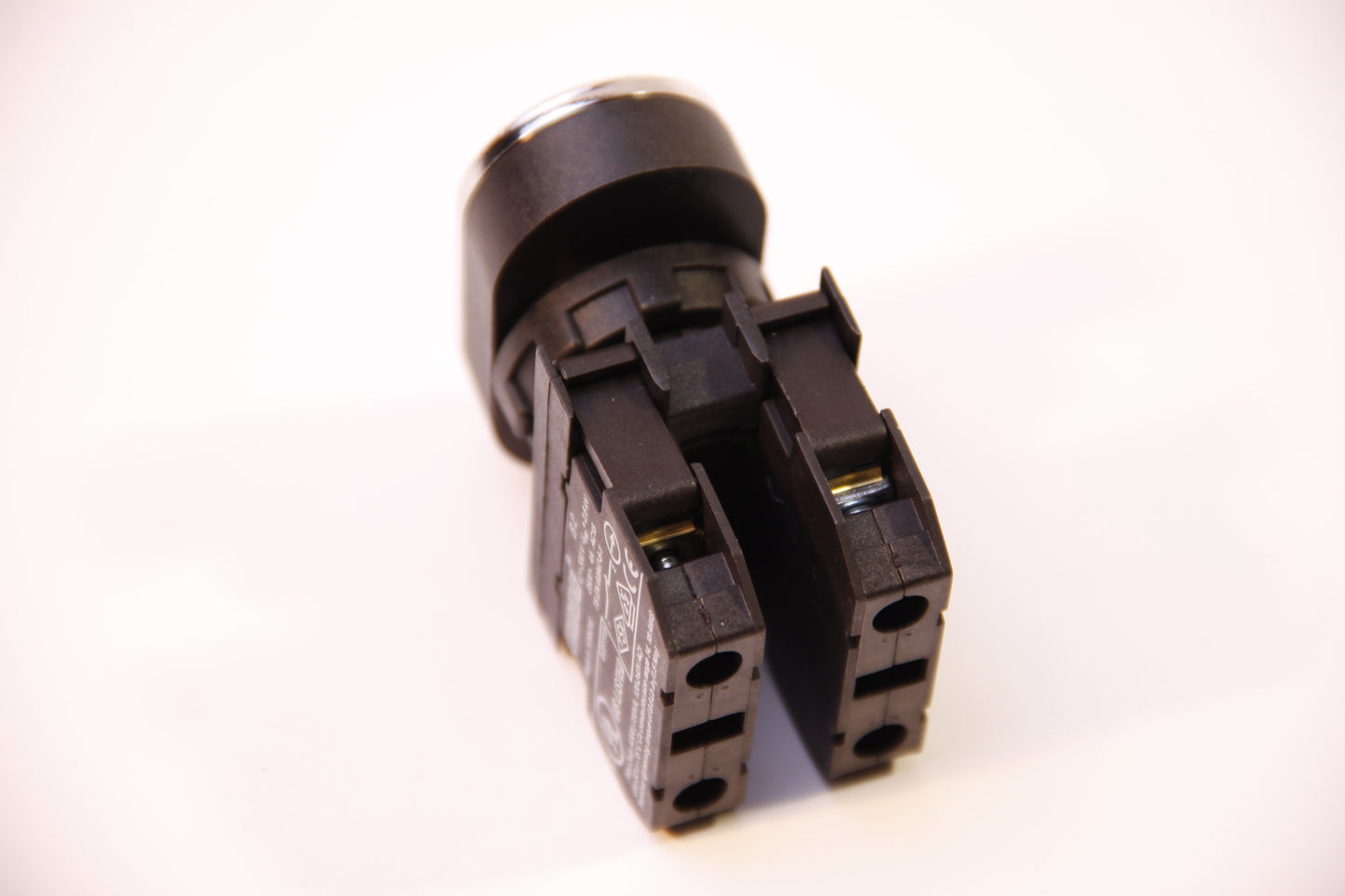

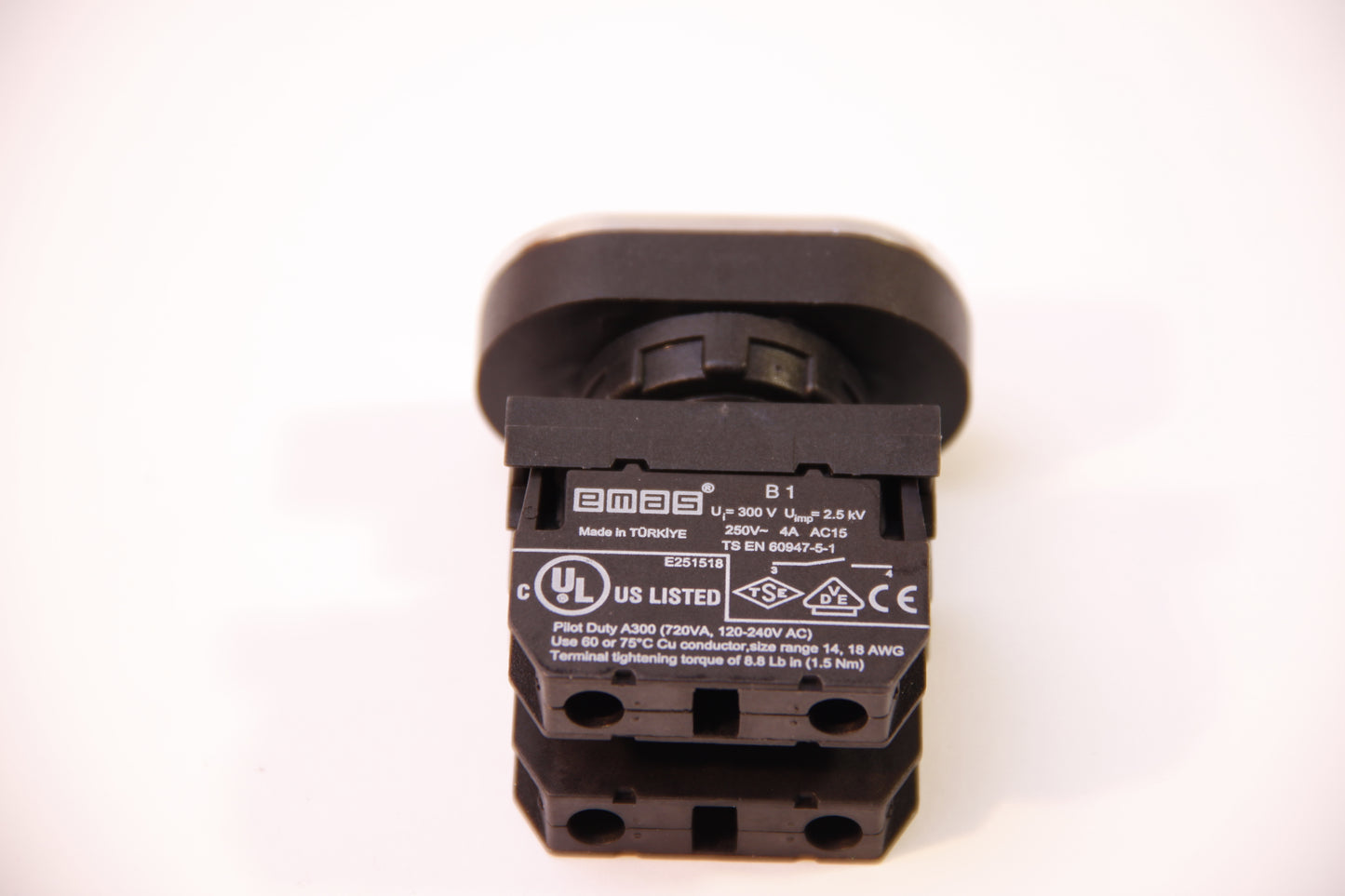

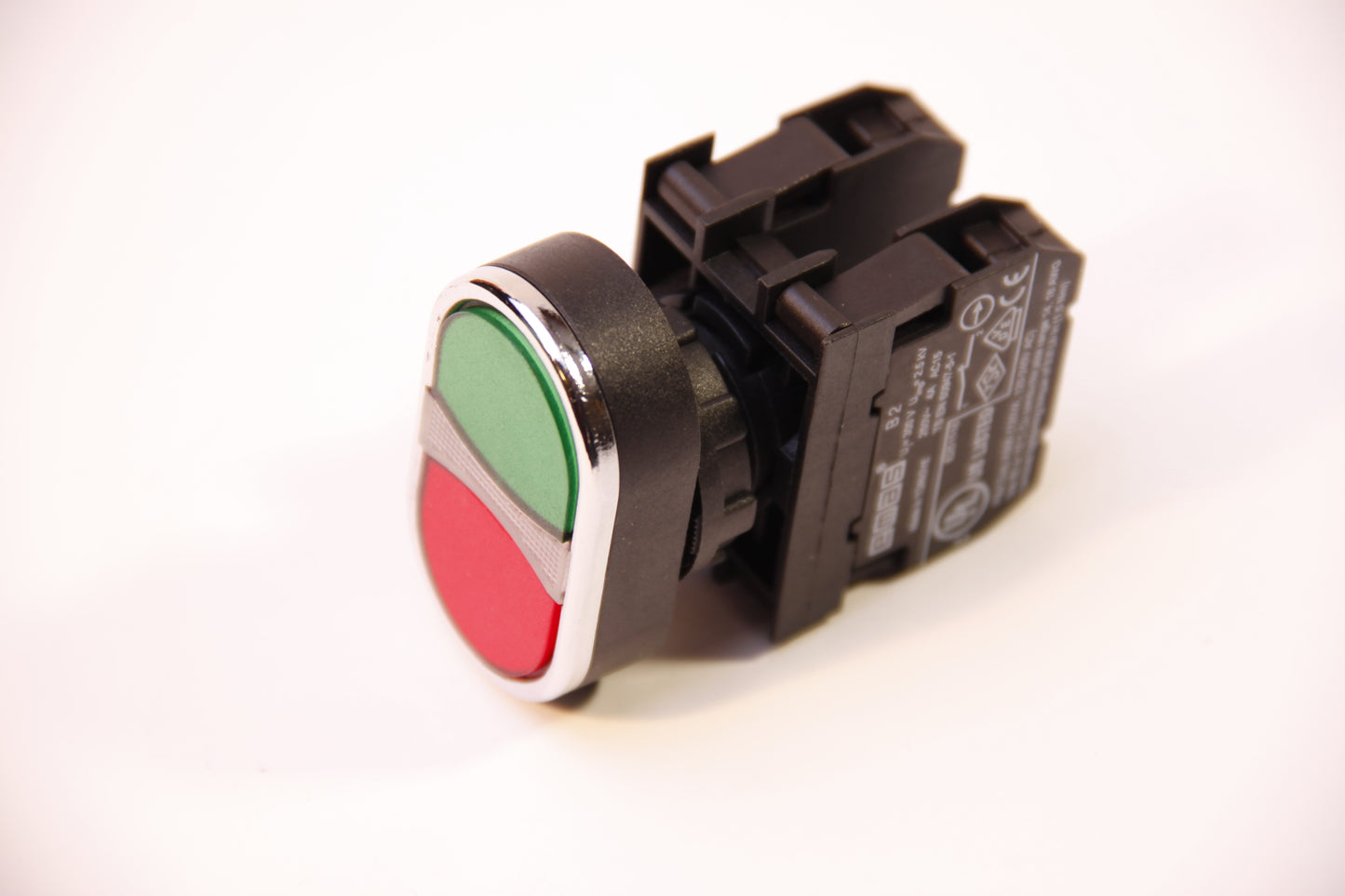

INDUSTRIAL 2-KEY CONTROL BUTTON 1NO + 1NC, RED GREEN
Power supply 100-230V AC or 12-30V AC / DC
| Ignition | 1NO + 1NC |
| Color | Red green |
| Diameter | 22mm |
| Contact current (Ie) | 4 A (250 V AC) |
| Category of use | AC 15 |
| Mechanical life (minimum quantity) | 500,000 |
| Electrical life (minimum quantity) | 100,000 |
| Operating frequency (on / off / hour) | Down. 3000 elect. 1200 |
| Insulation voltage (Ui) | 300V |
| Impact resistance (Uimp) | 2.5 kV |
| Dielectric strength (body contact) | 2,500V AC |
| Dielectric strength (contact-contact) | 1.500V AC |
| Insulation resistance | 10MΩ min. (500V DC) |
| Working temperature | -15 / + 80 ° C |
| The degree of pollution | 3 |
| Protection class | IP50 |
| Contact material | AgNi |
| Cable cross section | 1.5-2.5 mm² |
| Downforce | 1.5 Nm |
| Short-circuit breaking capacity (Ics) | 1kA |
