RH-8 IP65 NEO ELEKTROPLAST PV hermetic surface-mounted switchgear
RH-8 IP65 NEO ELEKTROPLAST PV hermetic surface-mounted switchgear
We ship within 24 hours 😀👍
Couldn't load pickup availability
RH-8 IP65 HERMETIC ENCLOSURE NEO ELEKTROPLAST OUTDOOR

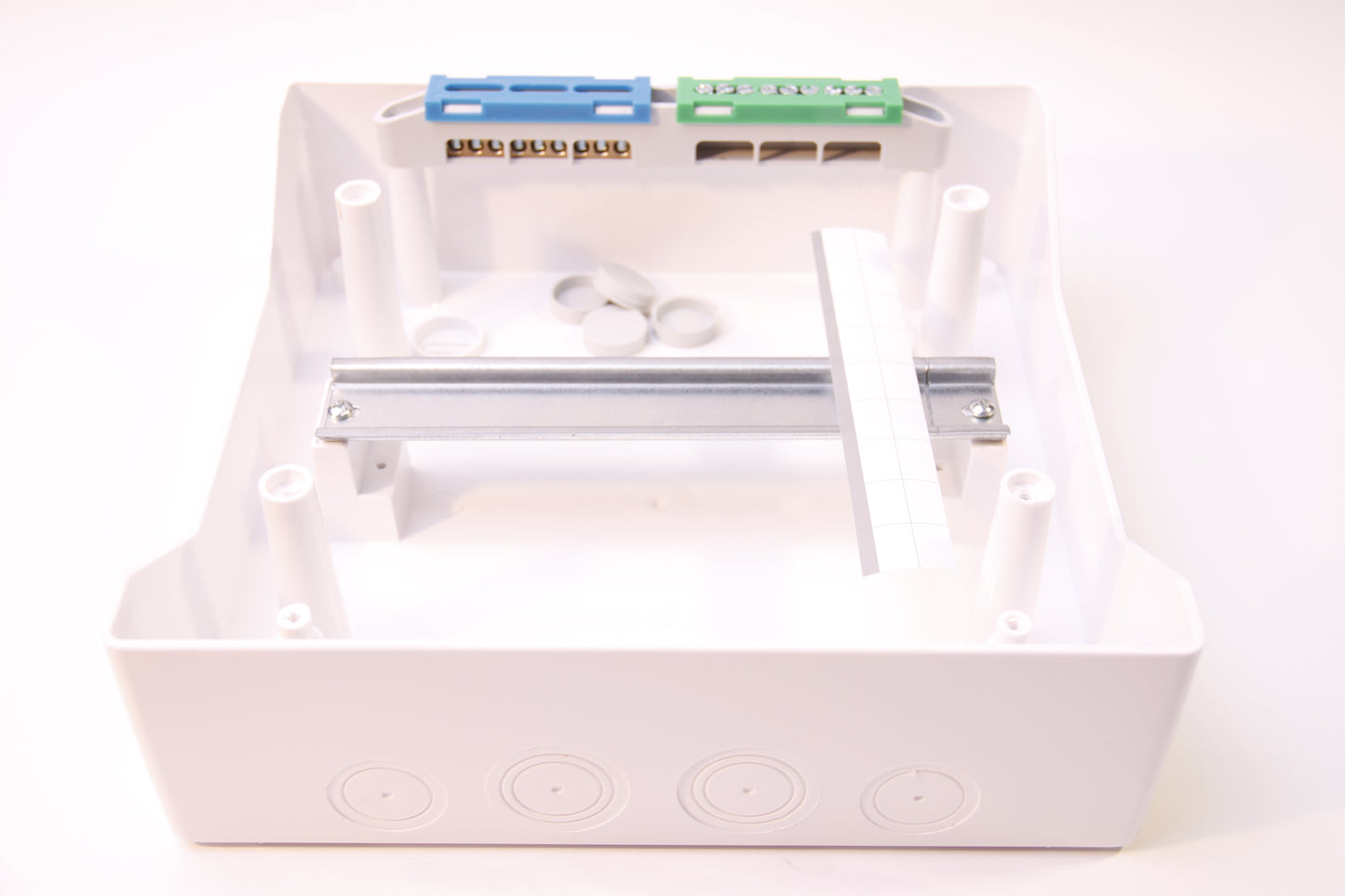

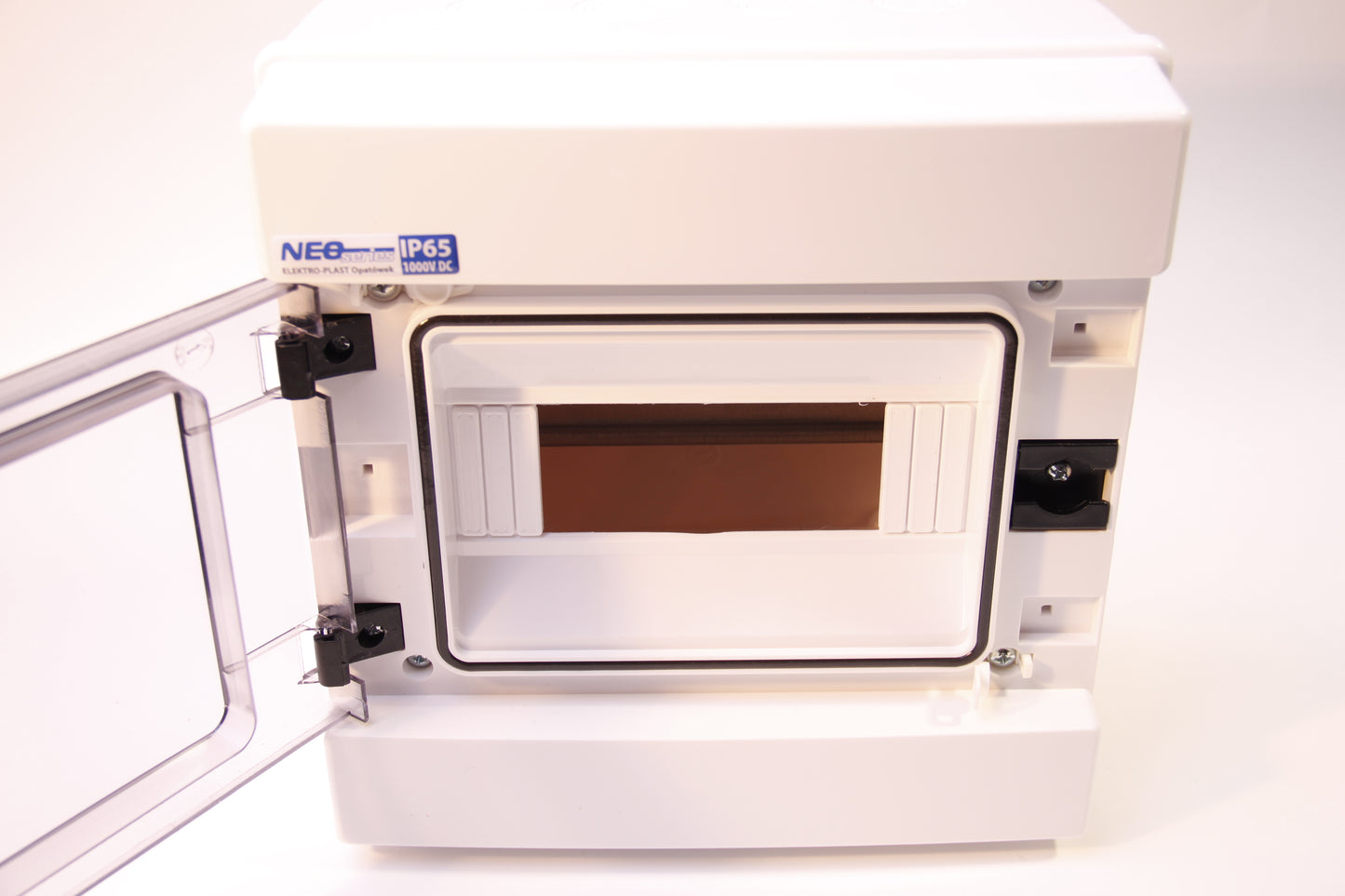

Hermetic switchgears of the RH "NEO" series with the IP65 protection degree are used in industrial construction. As standard, they are equipped with a TH35 rail and N and PE terminal blocks. The IP degree in the RH "NEO" switchgear is ensured by the two types of seal consisting of a seal within the housing and the front part of the cover and an additional cover and glass seal. The front part of the switchgear has a transparent door. The door can be opened to the left or right by turning the hinges to the appropriate side.
| DEPTH | 138 mm |
| NUMBER OF ROWS | 1 |
| RAL NUMBER | 9003 |
| WIDTH | 260 mm |
| WIDTH IN NUMBER OF MODULES | 8 |
| HEIGHT | 260 mm |
| TRANSPARENT COVER / DOOR | Yes |
| WITH A LOCK | Yes |
| WITH TRANSPARENT LID | Yes |
| COLOR | White |
| MOUNTING METHOD | Surface mounting |
| HOUSING MATERIAL | Plastic |
| PROTECTION CLASS (IP) | IP65 |
| TYPE OF COVER | Closed |
| DIN RAIL | Yes |
| TYPE OF COVER | Door |
| SKIRT N | Yes |
| PE STRIP | Yes |
