Mechanical door switch with lock 3P 32A 400V Tracon
Mechanical door switch with lock 3P 32A 400V Tracon
Regular price
152,16 zl PLN
Regular price
Sale price
152,16 zl PLN
Unit price
per
Tax included.
Shipping calculated at checkout.
We ship within Three days 😀👍
Couldn't load pickup availability
lub zamów przez TEL: 731 778 883
SHIPPING COST PLN 0
If you order products offered on our store's website for a total amount:
- at least PLN 200 , you get the shipment to a parcel locker for PLN 0!
- at least PLN 250 , delivery to a parcel locker COD on delivery PLN 0!

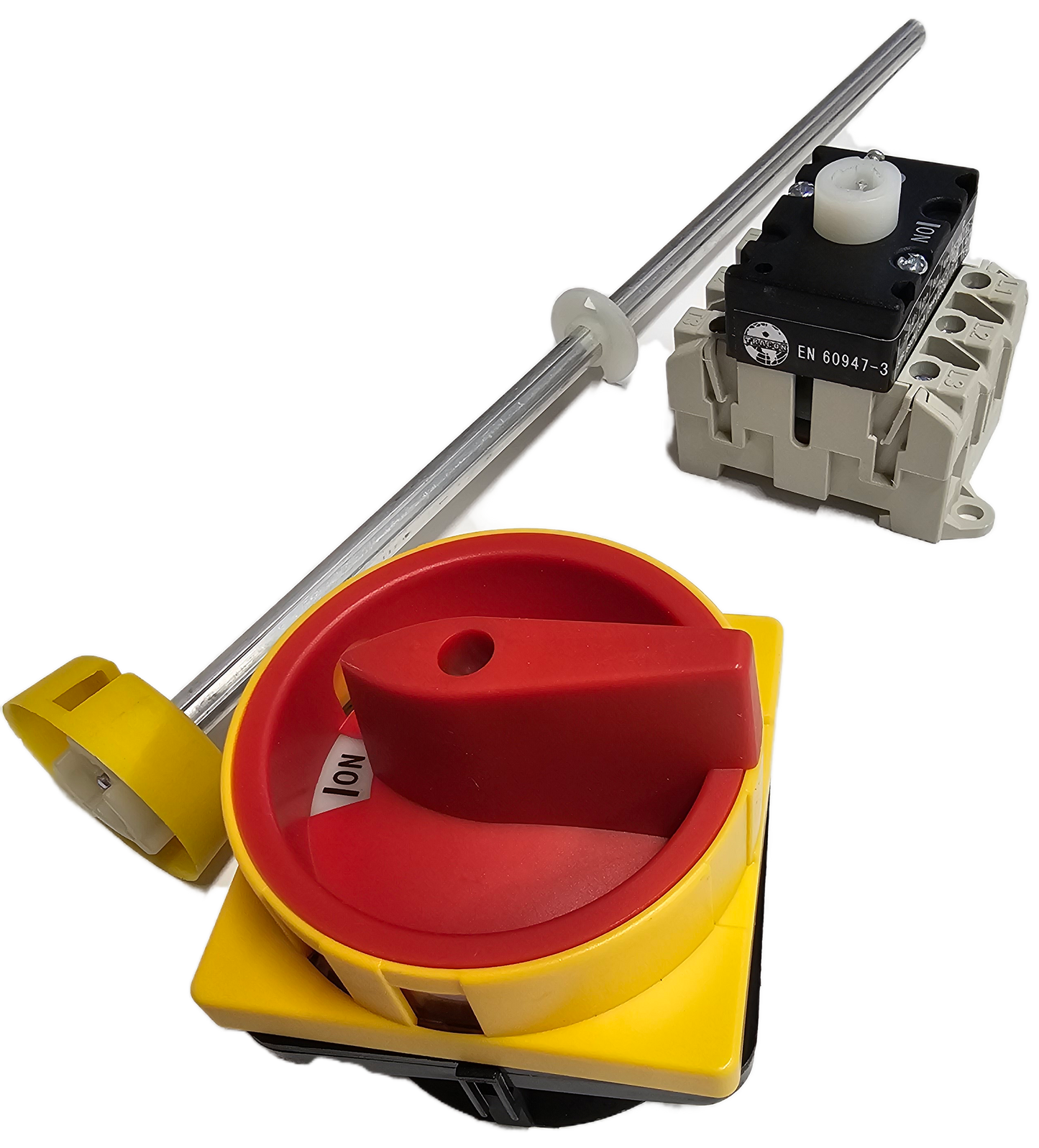

Door safety switch with lock, rail mounted
To the control cabinet
For door mounting
TSS-32/3K Tracon
PARAMETERS:
| As a main switch: | Yes |
| As a repair switch: | Yes |
| As a safety switch: | Yes |
| Maximum rated operating voltage Ue AC: | 440V |
| Rated operating voltage: | 360 -440V |
| Rated continuous current Iu: | 32 A |
| Rated operating power for AC-3, 400 V: | 7.5kW |
| Optional motor drive: | NO |
| Construction of the device: | Permanently mounted device |
| Control color: | Red |
| Type of actuator: | Rotary drive for doors |
| Type of main contact connection: | Screw connection |
| Degree of protection (IP) of the front part: | IP42 |

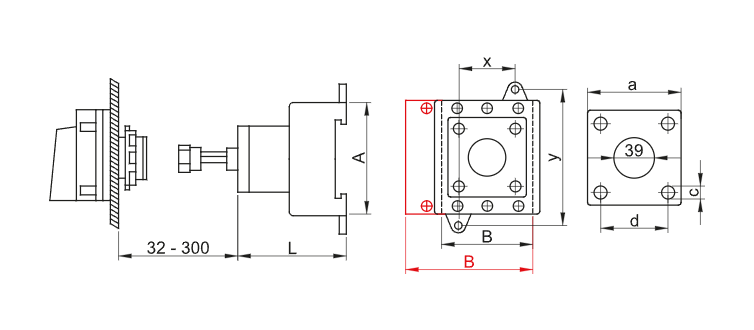

| Adjusting the stem length: | 32-300mm |
Informacje o producencie
| Nazwa: | TRACON Budapest Kft. |
| Adres: | Dunakeszi, Pallag u 23, 2120 Węgry |
| E-mail: | info@tracon.hu |
Produkt wprowadzony do obrotu na terenie UE przed 13.12.2024.
