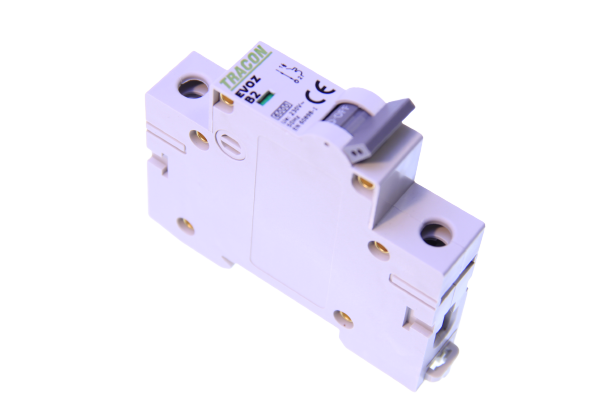

CIRCUIT BREAKER 1P B10A 6kA B2 DIN
EVOZ1B10 TRACON
Possibility of retrofitting with an auxiliary contact for the EVOZ series <<< check
PARAMETERS:
Trigger Characteristics: | B |
Number of poles (total): | 1 |
Number of poles: | 1 |
Rated current: | 10A |
Rated voltage: | 230V |
Rated insulation voltage Ui: | 500V |
Rated impulse withstand voltage Uimp: | 4 kV |
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V: | 6 kA |
Voltage type: | AC |
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V: | 6 kA |
Frequency range: | 50 - 60 Hz |
Simultaneously disconnected N pole: | NO |
Possibility of additional equipment: | Yes |
Width expressed in the number of modules: | 1 |
Degree of protection (IP): | IP20 |
Ambient temperature under working conditions: | - 25 - 55 °C |
Cross-section of the connected single-wire cable: | 1 - 25 mm² |
