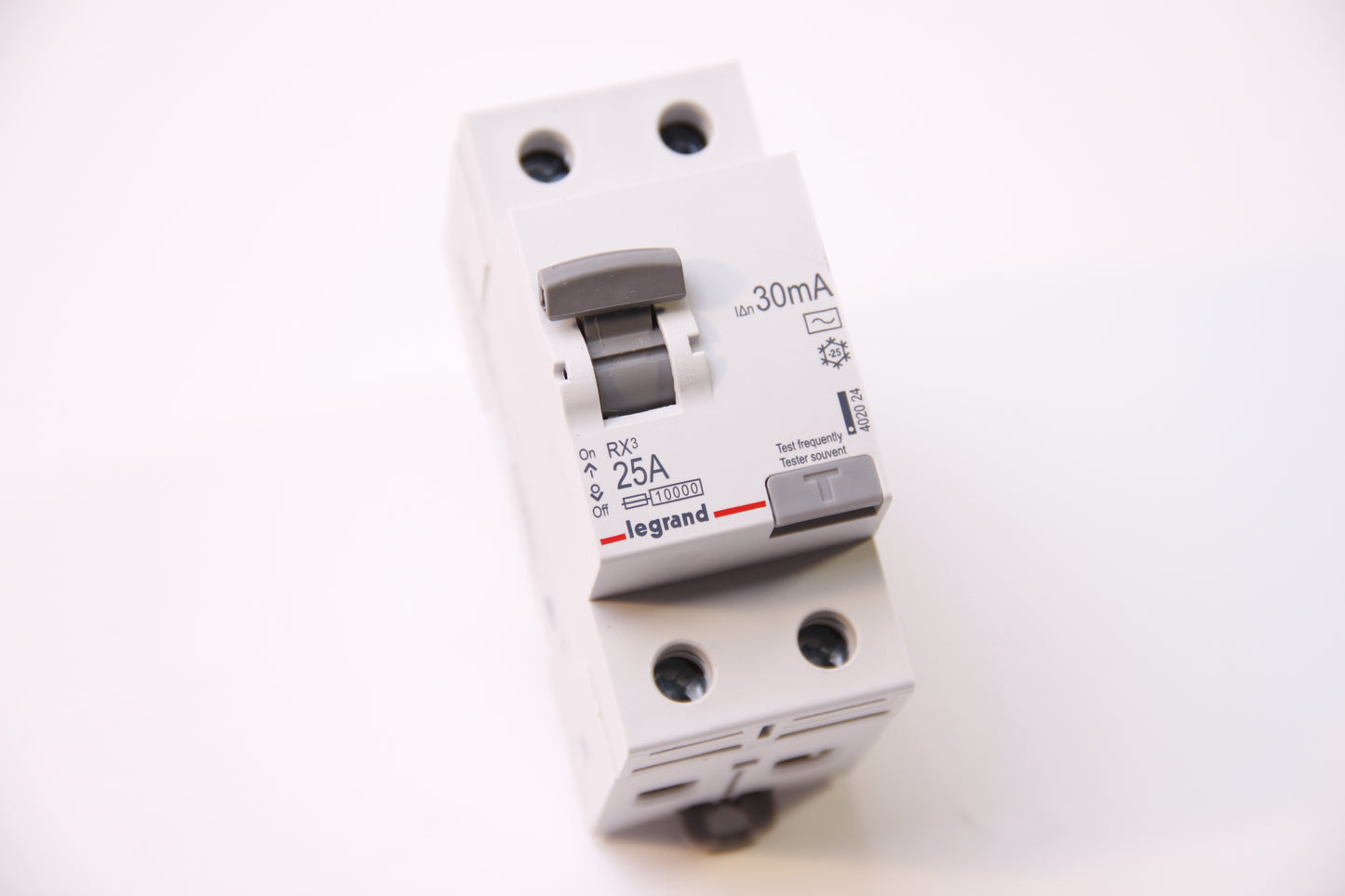

Residual current circuit breaker RX3 2P 25A 30mA LEGRAND

Residual current circuit breaker RX3 2P 25A 30mA LEGRAND

112,28 zl PLN
112,28 zl PLN
Sale Sold out
Tax included. Shipping calculated at checkout.
Shipping costs from PLN 0! 📦

We ship within 24 hours 😀👍

RESIDUAL CURRENT CIRCUIT BREAKER RX3 2P 25A 30mA LEGRAND FOR DIN RAIL

BUILD-IN DEPTH 44 mm
NUMBER OF POLES 2
RATED VOLTAGE 230 volts
INSULATION RATED VOLTAGE UI 250 V.
RESISTANCE TO CURRENT SHOCK 0.25 kA
SECTION OF CONNECTING SINGLE WIRE 0.75 - 50 mm2
CROSS SECTION OF CONNECTED MULTIPLE CABLE 0.75 - 35 mm2
RATED CURRENT 25 A.
DEGREE OF POLLUTION 2
WIDTH IN NUMBER OF MODULES 2
AMBIENT TEMPERATURE AT WORKING CONDITIONS -25-60 ° C
HOUSING DIMENSION (ACCORDING TO DIN 43880) 1
SHORT CIRCUIT STRENGTH (ICW) 10 kA
UIMP RATED SURGE ENDURING VOLTAGE 4 kV
RATED DIFFERENTIAL CURRENT 30 mA
TRIP TYPE AC
WITH LOCK Yes
MOUNTING METHOD DIN rail
PROTECTION CLASS (IP) IP20
SHORT TIME RELEASE Not
FREQUENCY 50 Hz
POSSIBILITY OF ADDITIONAL EQUIPMENT Not
SELECTIVE PROTECTION Not
