Differential circuit breaker 80 A 100mA
Type AC
80A, 100mA, 6kA, AC
EVOV4P801 Tracon
The switch can be sealed when disconnected!
Possibility of connecting a fork rail
PARAMETERS:
| Number of poles: | 4 |
| Nominal voltage: | 400V |
| Nominal current: | 80A |
| Rated differential current: | 0.1A |
| Rated insulation voltage Ui: | 500V |
| Rated impulse withstand voltage Uimp: | 4kV |
| Installation method: | DIN rail |
| Sensitivity: | AC |
| Selective protection: | NO |
| Short circuit strength (Icw): | 6kA |
| Voltage type: | AC |
| Frequency: | 50Hz |
| Possibility of additional equipment: | NO |

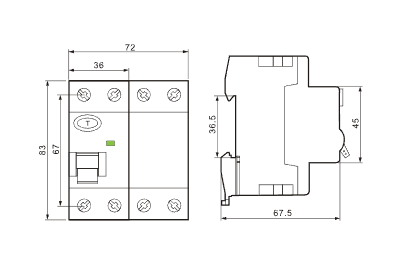

| Width expressed in number of modules: | 72 |
| Ambient temperature in operating conditions: | -25 -55 °C |
| Cross-section of the connected multi-core cable: | 2.5 -25mm² |
| Cross-section of the connected single-wire wire: | 2.5 -25mm² |
Informacje o producencie
| Nazwa: | TRACON Budapest Kft. |
| Adres: | Dunakeszi, Pallag u 23, 2120 Węgry |
| E-mail: | info@tracon.hu |
Produkt wprowadzony do obrotu na terenie UE przed 13.12.2024.
