Wago

2-wire rail terminal block, red 2.5mm2 2002-1203 TOPJOBS

2-wire rail terminal block, red 2.5mm2 2002-1203 TOPJOBS

Regular price 3,50 zl PLN
Regular price Sale price 3,50 zl PLN
Sale Sold out
Tax included. Shipping calculated at checkout.
Shipping costs from PLN 0! 📦

We ship within 24 hours 😀👍

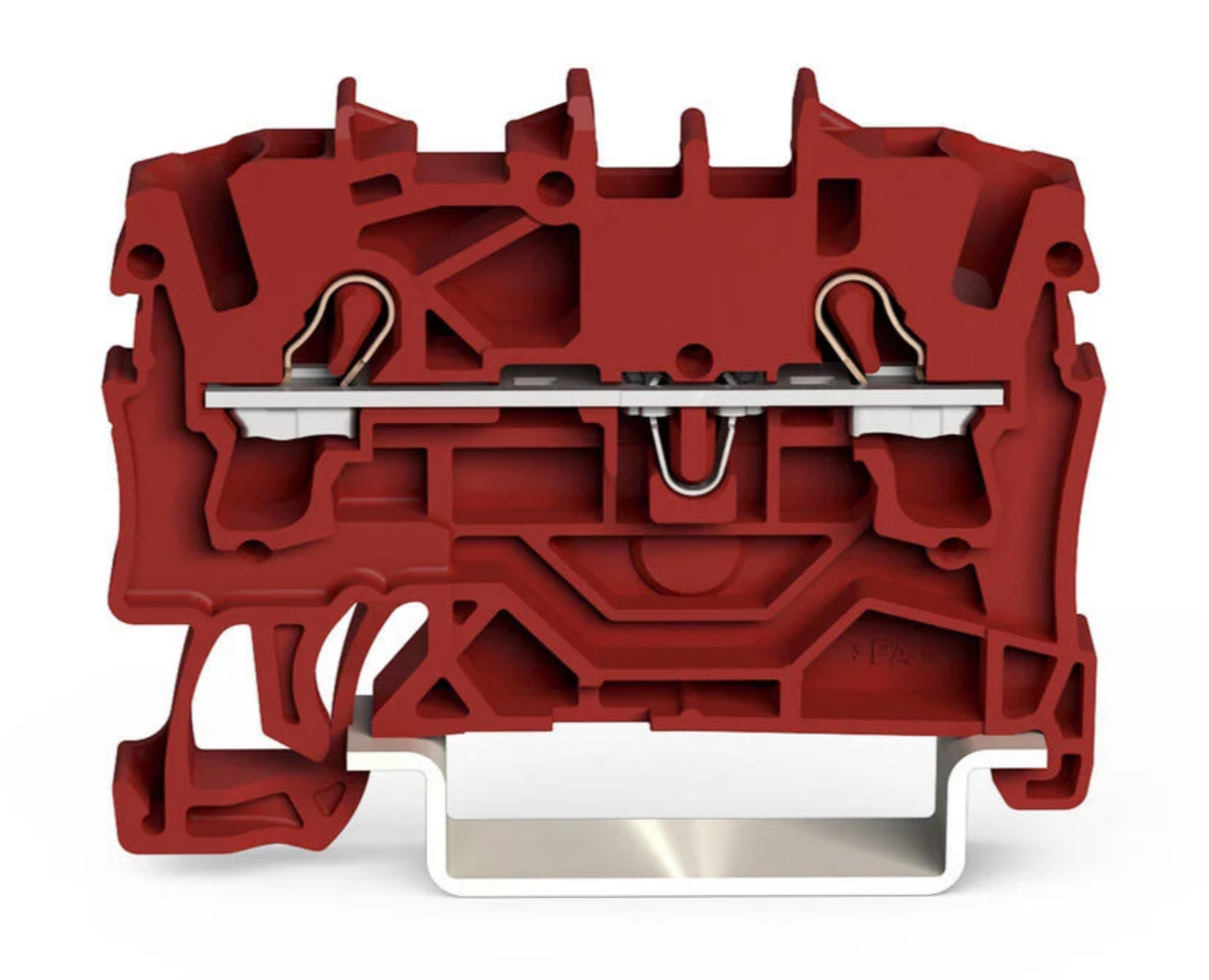

WAGO spring-through rail connector for DIN rail 0.25 - 4mm2

Rail connector 2002-1203 TOPJOBS is a product made of polyamide (PA66).
It is a two-wire connector in red. Installation is possible on a 35mm DIN rail.

Company product WAGO has the following features:

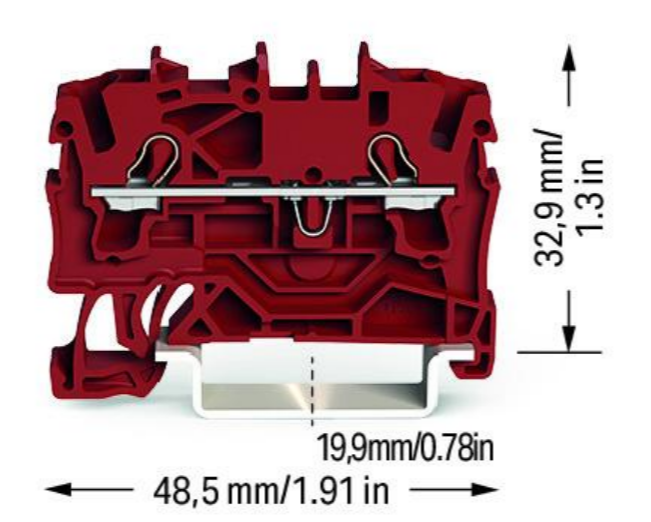

- length 48.5mm
- width 5.2mm
- height from the top edge of the rail 32.9mm
- rated voltage 550 V
- rated current 24 A

The operating temperature range of this connector is from -60 to 105 degrees Celsius.
The nominal cross-section is 2.5mm2.

PARAMETERS:

Cross-section of the connected single-wire cable [mm2] 0.25 - 4
Cross-section of the connected stranded cable without ferrule [mm2] 0.25 - 4
Cross-section of the connected multi-core cable [mm2] 0.25 - 4
Operating temperature range [°C] up to -60 to +105
Assembly method
35 mm DIN mounting rail
Type of insulating material
Thermoplastic material
Internal floors bridged NO
Type of electrical connection 2
Spring clamp
Explosion-proof version "EEx e" Yes
Rated current In [A] 24
Number of levels 1
Height with the lowest installation method [mm] 33
Rated voltage [V] 800
Operating temperature range [°C] from -60
Length [mm] 48.5
Color Red
Flammability class of the insulating material according to UL 94 V0
Type of electrical connection 1
Spring clamp
Connection position
From above / above
Closing plate required Yes
Number of terminals per floor 2
Raster width / size [mm] 5.2
