2-wire rail terminal block, blue 2.5mm2 2002-1204 TOPJOBS
2-wire rail terminal block, blue 2.5mm2 2002-1204 TOPJOBS
We ship within 24 hours 😀👍
WAGO spring-through rail connector for DIN rail 0.25 - 4mm2

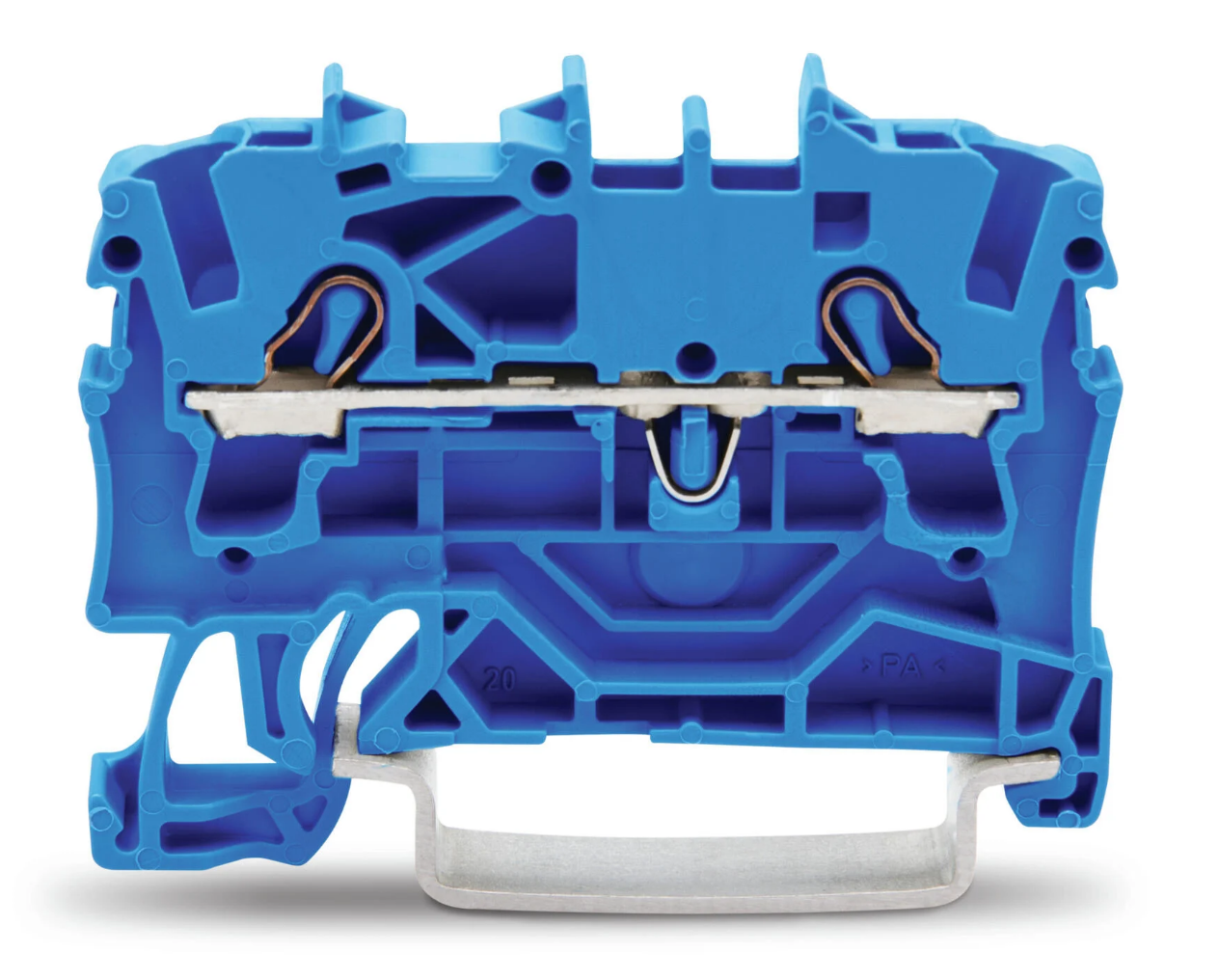

Rail connector 2002-1204 TOPJOBS is a product made of polyamide (PA66).
It is a blue two-wire connector. Installation is possible on a 35mm DIN rail.
Company product WAGO has the following features:

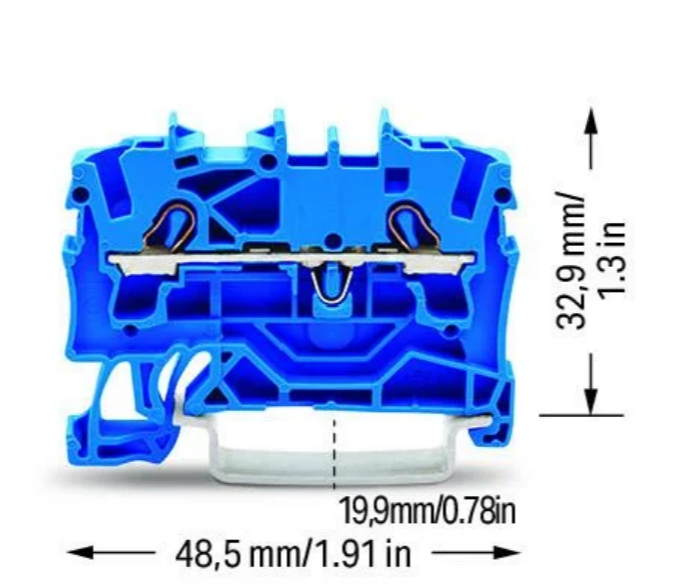

- length 48.5mm
- width 5.2mm
- height from the top edge of the rail 32.9mm
- rated voltage 550 V
- rated current 24 A
The operating temperature range of this connector is from -60 to 105 degrees Celsius.
The nominal cross-section is 2.5mm2.
PARAMETERS:
Cross-section of the connected single-wire cable [mm2] | 0.25 - 4 |
Cross-section of the connected stranded cable without ferrule [mm2] | 0.25 - 4 |
Cross-section of the connected multi-core cable [mm2] | 0.25 - 4 |
Operating temperature range [°C] up to | -60 to +105 |
Assembly method |
35 mm DIN mounting rail
|
Type of insulating material |
Thermoplastic material
|
Internal floors bridged | NO |
Type of electrical connection 2 |
Spring clamp
|
Explosion-proof version "EEx e" | Yes |
Rated current In [A] | 24 |
Number of levels | 1 |
Height with the lowest installation method [mm] | 33 |
Operating temperature range [°C] from | -60 |
Length [mm] | 48.5 |
Color | Blue |
Flammability class of the insulating material according to UL 94 | V0 |
Type of electrical connection 1 |
Spring clamp
|
Connection position |
From above / above
|
Closing plate required | Yes |
Number of terminals per floor | 2 |
Raster width / size [mm] | 5.2 |
Product card <<<
