Wago
2-wire rail connector orange 4mm2 2004-1202 TOPJOBS
2-wire rail connector orange 4mm2 2004-1202 TOPJOBS
Regular price
5,25 zl PLN
Regular price
Sale price
5,25 zl PLN
Unit price
per
Tax included.
Shipping calculated at checkout.
We ship within 24 hours 😀👍
Couldn't load pickup availability

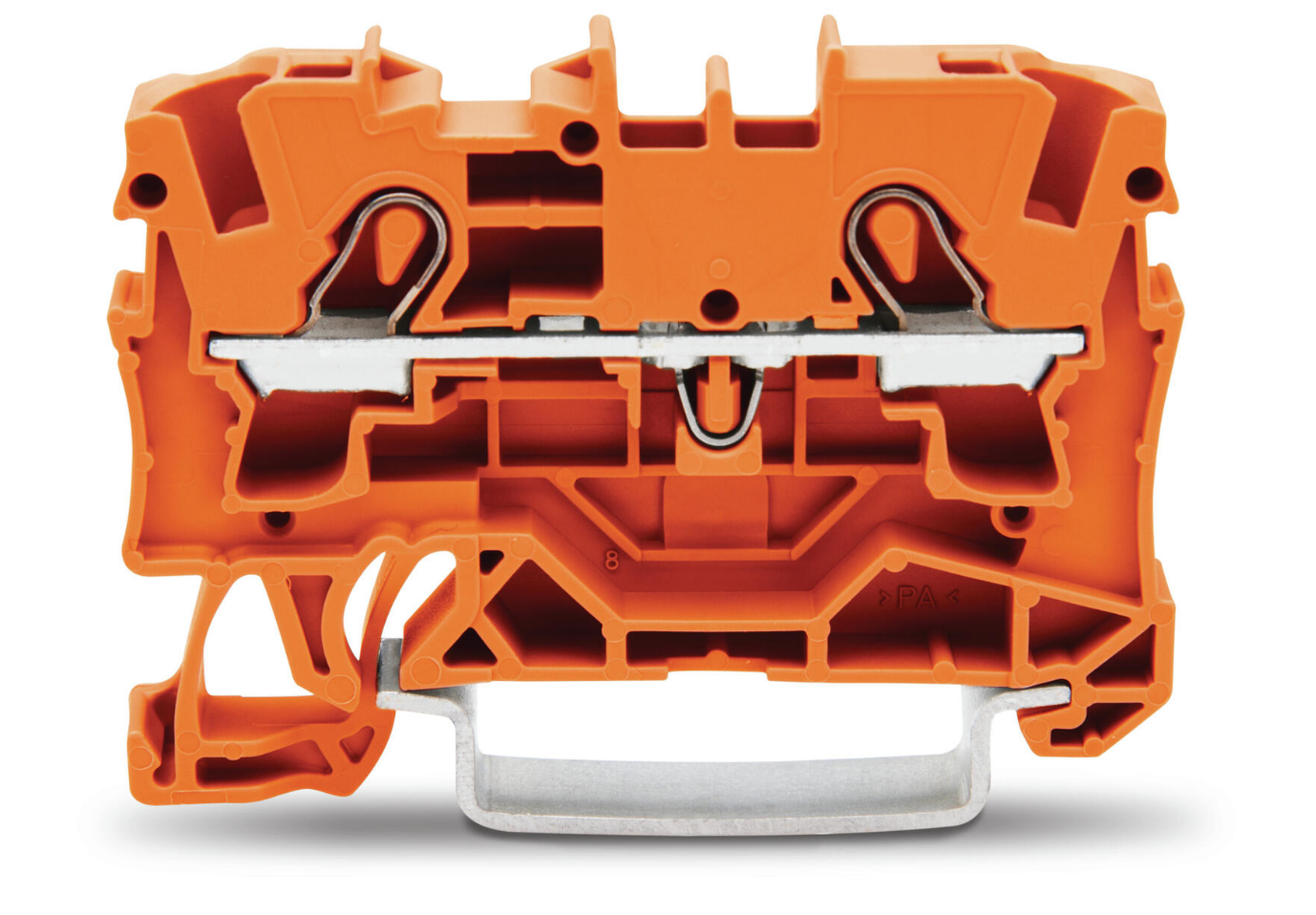

WAGO spring-through rail connector for DIN rail 0.5 - 6mm2
| Assembly method | 35 mm DIN mounting rail |
| Type of insulating material | Thermoplastic material |
| Type of electrical connection 2 | Spring clamp |
| Explosion-proof version "EEx e" | Yes |
| Cross-section of the connected single-wire cable [mm2] | 0.5 to 6.0 |
| Cross-section of the connected stranded cable without ferrule [mm2] | 0.5 to 6.0 |
| Cross-section of the connected multi-core cable [mm2] | 0.5 to 6.0 |
| Operating temperature range [°C] | -35 to 105 |

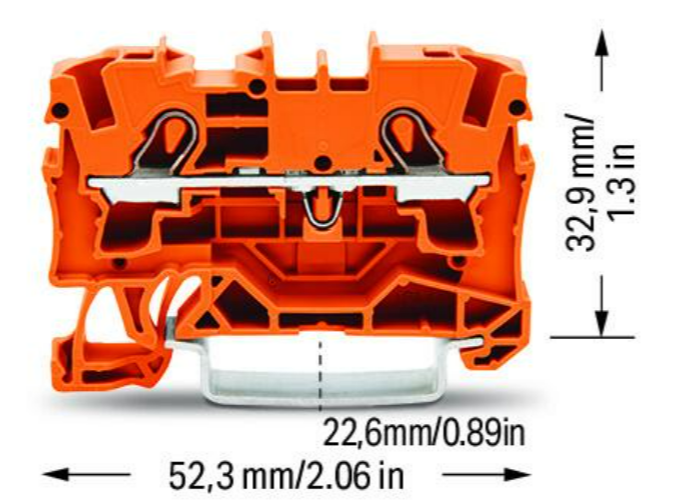

| Length [mm] | 52.5 |
| Number of terminals per floor | 2 |
| Raster width / size [mm] | 6/2000 |
| Color | Orange |
| Flammability class of the insulating material according to UL 94 | V0 |
| Type of electrical connection 1 | Spring clamp |
| Connection position | From above / above |
| Closing plate required | Yes |
| Rated current In [A] | 32 |
| Number of levels | 1 |
| Height with the lowest installation method [mm] | 33 |
