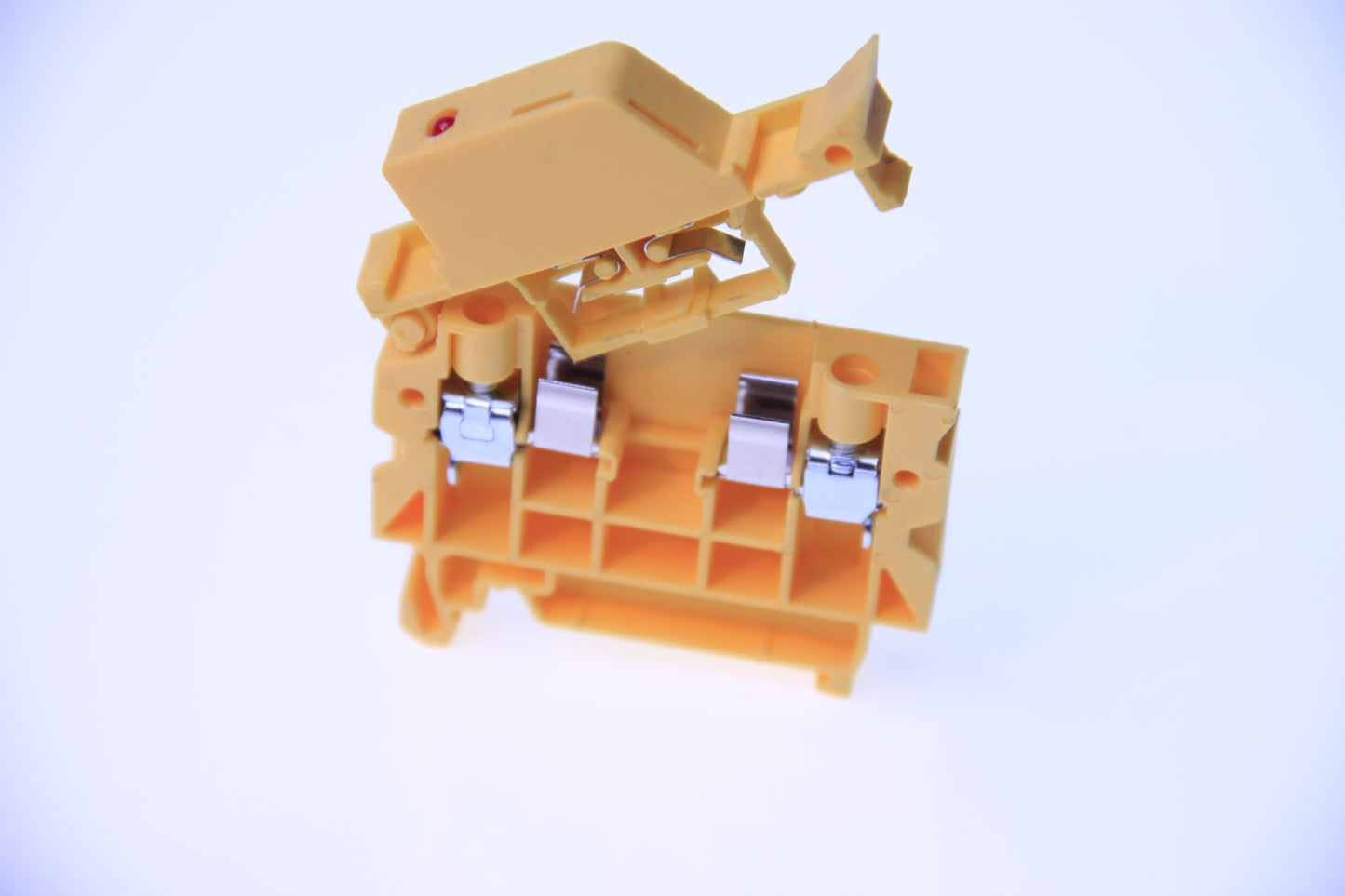

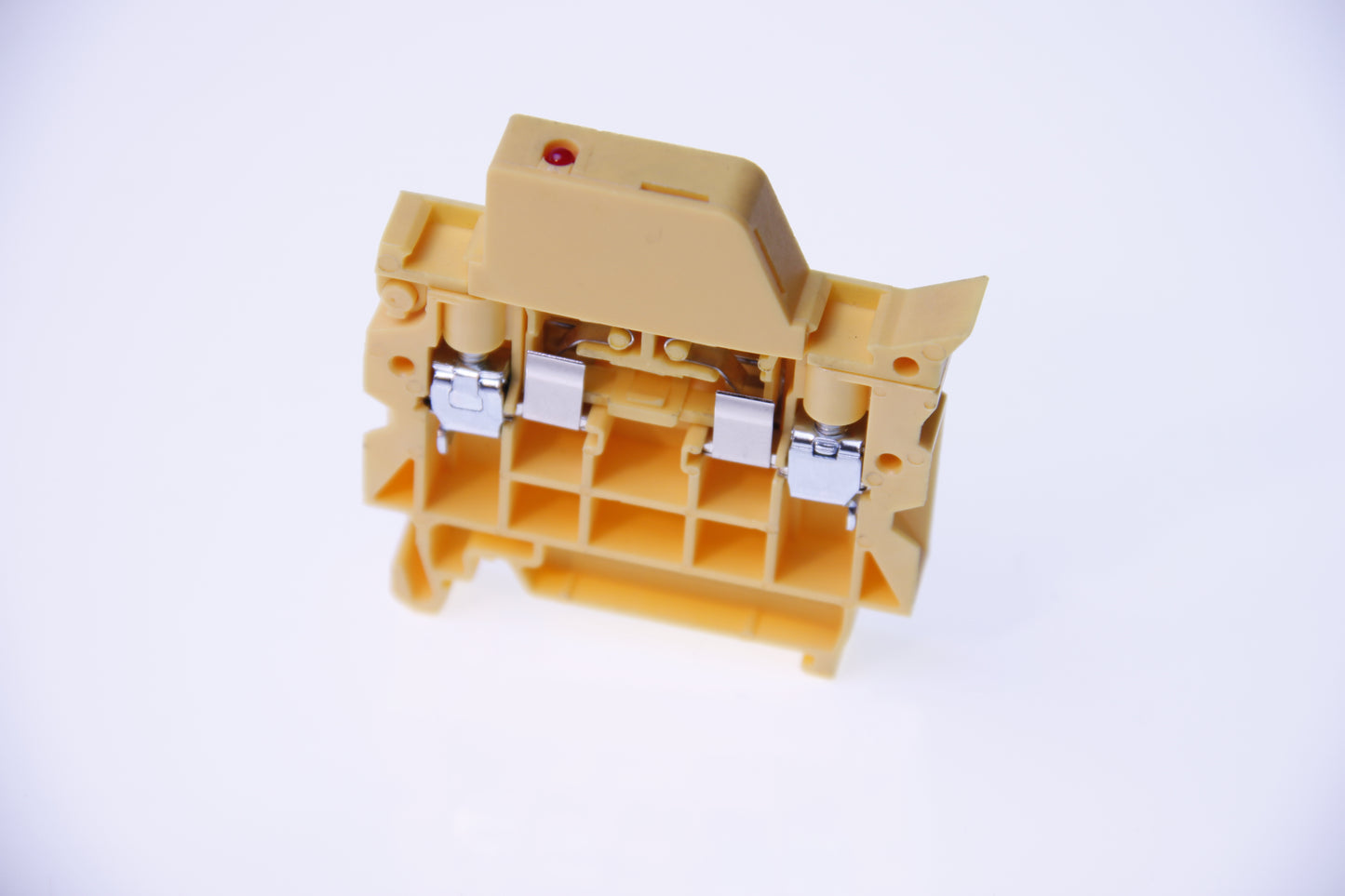

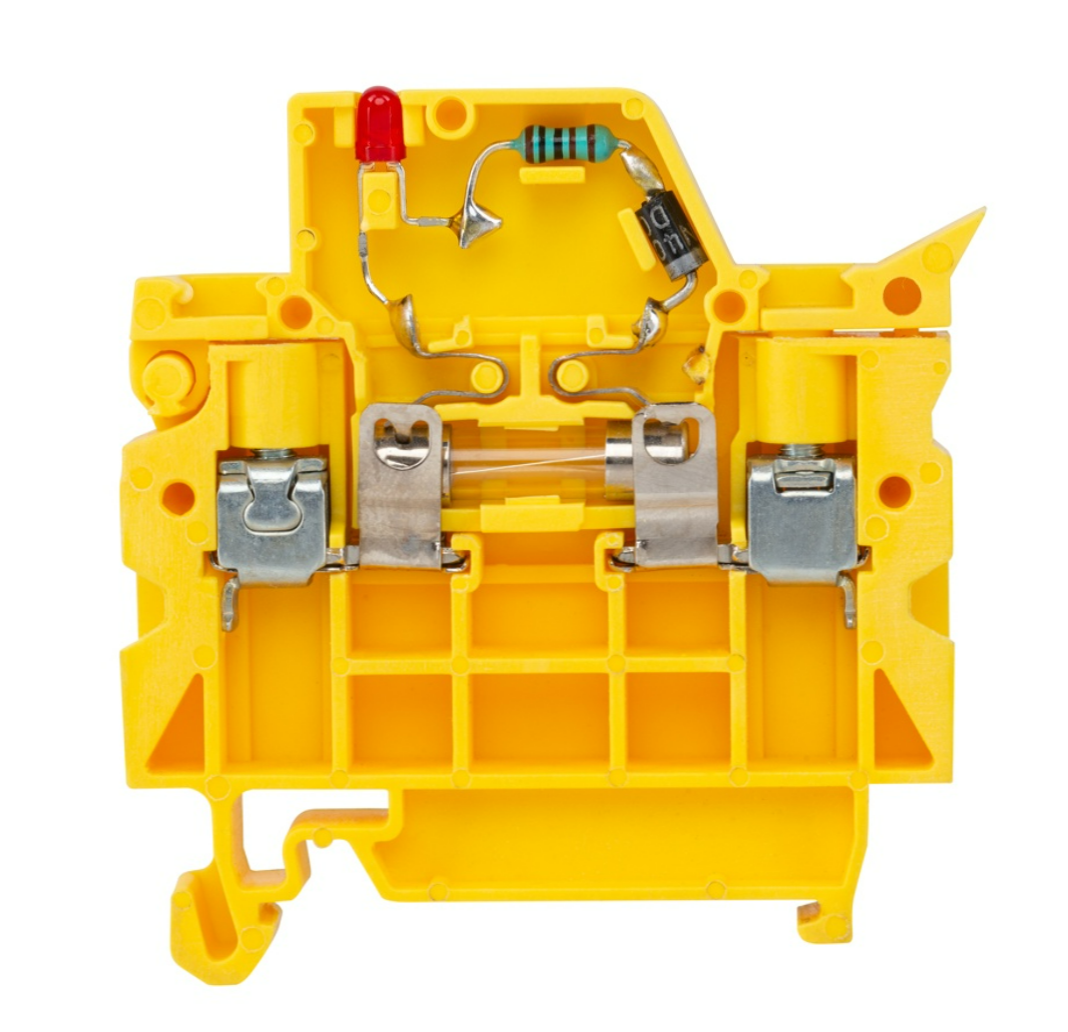

WDU 4 DIN WEIDMULLER CONNECTOR
| LENGTH | 60 mm |
| NUMBER OF LEVELS | 1 |
| NUMBER OF CLAMPS PER LEVEL | 2 |
| RATED VOLTAGE | 800 V. |
| SECTION OF CONNECTING SINGLE WIRE | 0.5 - 6 mm2 |
| CROSS-SECTION OF CONNECTED STRAND CABLE WITHOUT A SLEEVE END | 0.5 - 6 mm2 |
| CROSS-SECTION OF CONNECTED CABLE WIRE WITH A SLEEVE END | 0.5 - 4 mm2 |
| CROSS SECTION OF CONNECTED MULTIPLE CABLE | 1.5 - 6 mm2 |
| RATED CURRENT IN | 32 A. |
| RAILWIDTH / SIZE | 6.1 mm |
| HEIGHT AT THE LOWEST INSTALLATION | 46.5 mm |
| WORKING TEMPERATURE RANGE | -60-130 ° C |
| TYPE OF ELECTRICAL CONNECTION 1 | Bolted connection |
| COLOR | Beige |
| MOUNTING METHOD | DIN TH-35 mm mounting rail |
| INSULATION ELEMENT MATERIAL | Thermoplastic material |
| INTERNAL FLOORS, BRIDGED | Not |
| CONNECTION POSITION | Side / Side |
| CLOSING PLATE REQUIRED | Yes |
| TYPE OF ELECTRICAL CONNECTION 2 | Bolted connection |
| EX-E EXPLOSION PROOF VERSION - CONFIRMED | Yes |
| FLAMMABILITY CLASS OF THE INSULATION MATERIAL ACCORDING TO UL94 | V0 |
