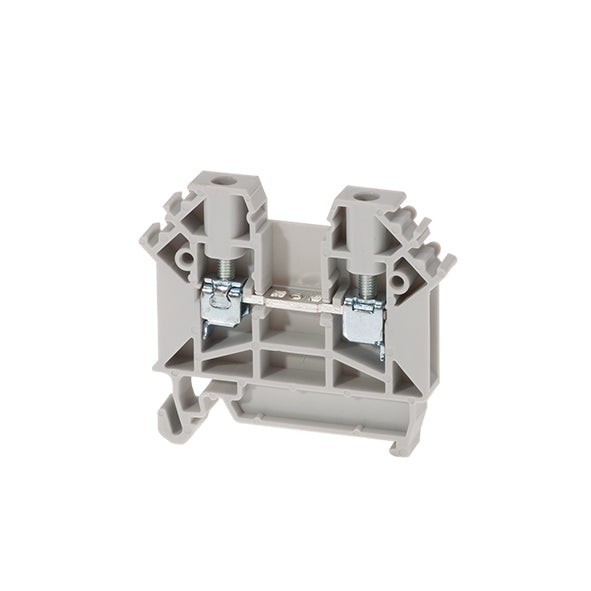

ZUG-10 DIN ROOM SCREW CONNECTOR

ZUG-10 DIN ROOM SCREW CONNECTOR

3,63 zl PLN
3,63 zl PLN
Sale Sold out
Tax included. Shipping calculated at checkout.
Shipping costs from PLN 0! 📦

We ship within 24 hours 😀👍

ZUG-10 DIN ROOM SCREW CONNECTOR

LENGTH 42 mm
NUMBER OF LEVELS 1
NUMBER OF CLAMPS PER LEVEL 2
RATED VOLTAGE 690 V.
SECTION OF CONNECTING SINGLE WIRE 0.5 - 10 mm2
CROSS-SECTION OF CONNECTED STRAND CABLE WITHOUT A SLEEVE END 0.5 - 6 mm2
CROSS-SECTION OF CONNECTED CABLE WIRE WITH A SLEEVE END 0.5 - 6 mm2
CROSS SECTION OF CONNECTED MULTIPLE CABLE 0.5 - 6 mm2
RATED CURRENT IN 57 A.
RAILWIDTH / SIZE 8 mm
HEIGHT AT THE LOWEST INSTALLATION 45 mm
WORKING TEMPERATURE RANGE -25 - 100 ° C
TYPE OF ELECTRICAL CONNECTION 1
Bolted connection
COLOR Gray
MOUNTING METHOD
DIN TH-35 mm mounting rail
INSULATION ELEMENT MATERIAL
Thermoplastic material
INTERNAL FLOORS, BRIDGED Not
CLOSING PLATE REQUIRED Yes
TYPE OF ELECTRICAL CONNECTION 2
Bolted connection
CONNECTION POSITION Top / Top
FLAMMABILITY CLASS OF THE INSULATION MATERIAL ACCORDING TO UL94 V2
